124MHz of bandwidth with bladeRF


Software defined radios are capable of a surprising number of things. After nearly a year of development, we have developed a method of increasing the bladeRF’s spectrum analysis bandwidth up to 124MHz. This software-only change takes advantage of the bladeRF’s advanced hardware design, and requires only a few additional changes to osmocom-sdr, and GQRX. With 96MHz it is possible to monitor the entirety of the 2.4GHz ISM band and not miss any Bluetooth or WiFi frames.

So how does this work? The bladeRF features a few HDL accelerators that allow it to calibrate and tune the underlying RF front-end several thousand times a second. By performing these tasks so quickly, the bladeRF can take in digitize and stitch together up to 200MHz of additional bandwidth.

How do I get this running? You will have to compile and use gr-osmosdr and GQRX from the Nuand branches, , and .

These instructions and this article only apply to the bladeRF x40 and bladeRF x115. To compile and run gr-osmosdr

$ cd ~/software/gnuradio-build/
$ wget
$ tar xfz experimental-gr-osmosdr.git.tar
$ cd ~/software/gnuradio-builds/gr-osmosdr
$ mkdir build
$ cd build
$ cmake -DCMAKE_INSTALL_PREFIX=/opt/gnuradio- ../
$ make -j8 && sudo make install && sudo ldconfig

To compile and run GQRX

$ cd ~/software/gnuradio-build/
$ wget
$ tar xfz experimental-gqrx.git.tar
$ cd gqrx
$ mkdir build
$ cd build
$ cmake -DCMAKE_INSTALL_PREFIX=/opt/gnuradio- ../
$ make -j8 && sudo make install && sudo ldconfig

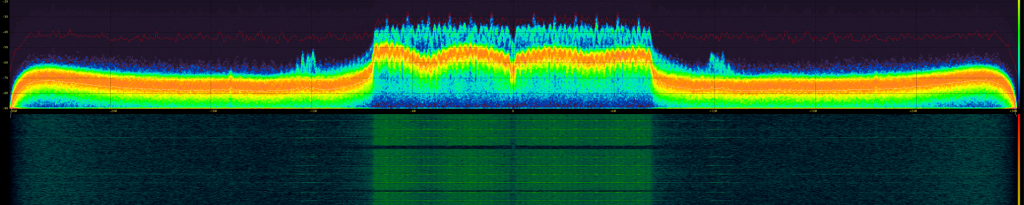

Monitor the entire 2.4GHz band with one radio.


NB: Screenshots showing 96MHz width represent a configured value below the maximum of 124MHz.

Read More

bladeRF VHDL ADS-B decoder


Source release

Github repository :


We are releasing the source to a high performance hardware accelerated ADS-B decoder that is compatible with the bladeRF. The decoder, and all relevant VHDL, C, and MATLAB design files are available. The decoder has a range of >270miles, can resolve many bit errors, and correct for packet collisions; these features that have only been available in commercial decoders until now. The decoder runs on the FPGA instead of the CPU, meaning that even a Raspberry Pi is able to handle the decoder’s maximum performance. The decoder is compatible with the dump1090 visualizer, however it simply passes fully decoded hex packets to dump1090 for displaying flights.

Pre-built bitstreams can be downloaded from

The source code and documentation are being released in conjunction with a multi-part series that explains the applied DSP theory and FPGA implementation of the ADS-B decoder.

The decoder runs on any bladeRF including the bladeRF x40 and bladeRF x115. Any low noise amplifier works with the bladeRF, however there is a bladeRF specific LNA available, the XB-300.




This multi part article will describe the design decisions and implementation of a Software Defined Radio based receiver. The article will focus on ADS-B and Mode-S.


What are ADS-B and Mode-S?


ADS-B, or Automatic Dependent Surveillance – Broadcast, is a wireless protocol used by commercial and private aircraft to identify themselves and broadcast their location in realtime. ADS-B is the digital packet format that sits on top of Mode S, the RF standard ADS-B is broadcasted over.




Why accelerate modems in hardware (with VHDL)?


Hardware acceleration allows for efficient, real-time processing of signals. An FPGA implementation of an algorithm can be designed so that a pipelined design can process a sample per clock cycle. This is not to say that a sample can be processed within one clock cycle of it arriving but rather the pipelined architecture will compute one sample per clock cycle after the pipeline fills up.


Although FPGAs have slower clock rates than processors, FPGAs can massively parallelize tasks. For applied DSP tasks, an FPGA running at 80MHz routinely outperforms an Intel i7 running at 3.5GHz. These capabilities are similar to GPGPUs. A modern GPU running CUDA or OpenCL can outperform a processor at number crunching because of the large number of parallel arithmetic cores in a GPU. So why use an FPGA for applied DSP? One main reason is cost, even the most inexpensive desktop processor setup will cost at least $150, whereas FPGAs can achieve a comparable performance for a fifth of the price. Additionally, a single chip is much smaller, more low power and power efficient than a complicated GPGPU desktop setup. Although GPGPU solutions in the same price range as FPGAs contains far more on-chip arithmetic processing power than an FPGA, FPGAs do have an added advantage. FPGAs have very a flexible programmable logic fabric that allows for clock-cycle accurate control of the FPGA’s resources. An effective engineer can utilize that level of control to do more with an FPGA running at 80MHz than a GPGPU. In my experience, GPGPUs are better suited for applications where raw computation power is needed and considerations like data latency, processing latency, and power efficiency do not matter.


What design flow is recommended?


Our preferred design flow is to model and simulate in MATLAB, implement and validate the modem using fixed-point arithmetic in C, and ultimately use the C model as a reference to implement the modem in VHDL.


MATLAB is a great tool for prototyping ideas very quickly. A few lines of Matlab can easily capture the essence of an idea that could take hours to implement in C. The goal of the ASD-B core MATLAB script is to simulate the end to end performance of the ADS-B waveform and observe how the modem reacts to expected channel effects (such as fading), and receiver phenomenon (such as DC offsets, clipping, quantization).


It is in this stage of the design that the acquisition, equalization, and decoding algorithms are developed.


Many of the channel effects, and receiver phenomenon are random number processes which means the only way to get a good understanding for the modem’s performance is to simulate many packets with similar perturbations. Some parameters such SNR, and multipath require sweeping, for example sweeping SNR from -5 dB to 3dB with 0.25dB increments is a good idea when working with a waveform that necessitates 1dB of SNR. Simulations where the SNR is swept across such a range is usually referred to as a BER (Bit Error Rate) curve and is one of the fundamental ways of characterizing the performance of a receiver.


Once the receiver architecture is validated by good simulated BER and PER (Packet Error Rate) performance, it is time to implement the modem. Going to VHDL may seem appealing at this point however it is much more time efficient to implement the modem in C. The MATLAB model uses floating point arithmetic and most of the operations are performed on vectors whereas the final VHDL implementation will be a pipelined fixed point arithmetic implementation. There are far too many design decisions that need to be made and validated in going from MATLAB to VHDL, a good intermediary step is to implement the modem in C. C provides 64bit fixed point data types and arithmetic operations, complements of the underlying x86 processor, that perfectly emulate how the VHDL implementation will work. The C implementation will work as an easy to debug implementation and good reference point for how the VHDL should behave.


The final translation to VHDL from a fixed-point C implementation is not without challenges. The greatest challenge in implementing the modem in VHDL is, as almost always, meeting timing closure. Almost all additions can fit in one clock cycle. Some multiplications can fit in one clock system, others may not. And almost no divisions can happen in less than N/2 clock cycles (where N is the number of bits in the dividend). These simple heuristics can be used as a rule of thumb for designing the arithmetic pipelines but there will still likely be timing problems that will have to be resolved.


Stage Pros Cons Notes
MATLAB Very efficient way of prototyping algorithms Many existing DSP and Telecomm tools Not real-time Can use a lot of RAM and CPU time The receiver architecture and techniques should be known before progressing.
C Can be real-time Memory and CPU efficient Provides bit level accurate simulations with VHDL Memory management, file IO, and all signal processing functions have to be implemented The sample-based fixed point implementation should be designed here. The modem should be able to match the vector-based floating point MATLAB reference modem.
VHDL Very fast, efficient, and customizable Very hard to debug interactively Design is no longer entirely a digital design, some physical effects of silicon can cause the design to misbehave Design defensively against operations that might cause problems with timing closure


The next article will begin diving in to the MATLAB code.

Read More

2016.01-rc1 Release

The 2016.01-rc1 release is available on GitHub.

Happy new year, everyone! This release includes a number fixes and some great new features. Notable items in this release are:

  • A redesigned Object-Oriented MATLAB® interface and Simulink® support via a System Object.
  • Support for taming the bladeRF’s on-board VCTCXO via a 1.8V 1 PPS or 10 MHz input
  • Support for setting the SMB clock output to an arbitrary frequency.
  • Revised and MIT-licensed DC offset calibration routines.
  • FX3 firmware updates:
    • Upgraded to Cypress FX3 SDK v1.3.3
    • A simple error logging mechanism for the FX3 firmware.
  • XB-100 support for libbladeRF and the bladeRF-cli
  • TX-side fixes in libbladeRF

For Windows® users, a new installer is available, along with an updated install guide.

Redesigned MATLAB® & Simulink® support

To better serve bladeRF users interested in leveraging MathWorks® products, we’ve re-designed and re-written our support for these tools from the ground up to yield a more intuitive interface and increased performance. We’ve pleased with the results so far, and hope you will be too!

This new implementation has been pulled into the main bladeRF repository and may be found here.

The driving goal behind this implementation was simplicity, in terms of both usability and implementation. We wished to keep the code between the user and libbladeRF as “thin” as possible, to minimize required maintenance efforts. To achieve this, we created a simple Object-Oriented interface atop of libbladeRF using loadlibrary() and calllib() calls to libbladeRF are made by accessing properties of a bladeRF and calling its wrapper methods.

Below are just few snippets to exemplify this new interface. In future blog posts, we’ll cover more advanced usage of both RX and TX timestamp functionality. Note that one can run the command, doc bladeRF, for more information.

MATLAB® Snippets

Query version information:

>> [major, minor, patch] = bladeRF.version;
>> fprintf('bladeRF MATLAB bindings v%d.%d.%d\n', major, minor, patch)
bladeRF MATLAB bindings v0.1.1
>> [major, minor, patch, ver_string] = bladeRF.library_version;
>> fprintf('libbladeRF %s\n', ver_string)
libbladeRF 1.5.0-git-7f6a461

Probe and display available devices:

>> devices = bladeRF.devices();
>> for n = 1:length(devices)
>>     fprintf('Instance: %2d, Bus: %2d, Address: %2d, Backend: %s, Serial: %s\n', ...
>>             devices(n).instance, devices(n).usb_bus, devices(n).usb_addr, ...
>>             strrep(devices(n).backend, 'BLADERF_BACKEND_', ''), ...
>>             devices(n).serial);
>> end;
Instance:  0, Bus:  2, Address:  2, Backend: LIBUSB, Serial: b57e7faa1df48fe26d1bf1df03346708
Instance:  1, Bus:  1, Address: 11, Backend: LIBUSB, Serial: e3f9dbf3143e436542cb0f3ae947caab

Instantiate a bladeRF object b and connect to the first available device:

>> b = bladeRF
b =
  bladeRF with properties:
          rx: [1x1 bladeRF_XCVR]
          tx: [1x1 bladeRF_XCVR]
      vctcxo: [1x1 bladeRF_VCTCXO]
    loopback: 'NONE'
        info: [1x1 struct]
    versions: [1x1 struct]
          xb: 'None'

The same as the above, but open a device whose serial number starts with “4fb”:

>> b = bladeRF('*:serial=e3f');

Configure RX parameters:

>> b.rx.frequency  = 915.25e6;
>> b.rx.samplerate = 5e6;
>> b.rx.bandwidth  = 3e6;
>> b.rx.lna        = 'MAX';
>> b.rx.vga1       = 30;
>> b.rx.vga2       = 5;

Run DC Calibrations

>> % Run all LMS6002D calibration
>> b.calibrate('ALL');
>> % Calibrate at the current frequency. Note that frequency lists can be used.
>> % See 'help bladeRF_IQCorr.auto_dc'
>> b.rx.corrections.auto_dc();
ans =
  -32.0000  576.0000    0.0002    0.0004

Receive and plot the FFT of 50,000 samples:

>> b.rx.start(); samples = b.receive(50e3); b.rx.stop();
>> pwelch(samples, [], [], b.rx.samplerate, 'centered');

Example result: Stereo FM from a wireless headphones

Deallocate bladeRF object b and close the device:

clear b;

Note: The device is only closed once all handle references have been cleared. (MATLAB inherently provides reference counting of handles.)

bladeRF_rx_gui Demo

The bladeRF_rx_gui.m example puts together the above concepts to create an interactive GUI that provides access to various device properties while displaying
live plots. Here are a few screenshots of it in action:

Simulink® System Object

The bladeRF_Simulink.m file implements a System Object that can me used in am model file via the MATLAB System. Instructions near the end of the Windows® Install Guide describe how to place this in a model and to configure it to RX, TX, or both.

We’ll plan to post more about this in future posts.

VCTCXO Taming via 1 PPS or 10 MHz input

In terms of stability, we’ve been quite pleased with the VCTCXO we’ve used on the bladeRF. However, oscillators will eventually age over time and drift from their calibrated frequency. Furthermore, many bladeRF users are interested in celluar applications, which require significant frequency accuracy.

Thanks to the excellent work of Brian Glod, FPGA v0.5.0 now includes the ability to continuously tame the VCTXCO using a 1.8V 1 PPS or 10 MHz input signal supplied via J71 pin 1. The libbladeRF functions, bladerf_set_vctcxo_tamer_mode() and bladerf_get_vctcxo_tamer_mode() may be used to enable and configure this functionality.

The same can be done in the bladeRF-cli:

bladeRF> set vctcxo_tamer 10MHz

  VCTCXO tamer mode: 10 MHz

# Wait some amount of time. More than 10 seconds should provide a
# very rough VCTCXO trim DAC estimate. 10 minutes should yield
# a more accurate estimate.

bladeRF> print trimdac
 Current VCTCXO trim: 0x8759
 Stored VCTCXO trim:  0x8b28

As we can see in the above, the nominal VCTCXO trim DAC value has deviated slightly from the factory calibrated value. Below we show how to update the value in flash for a bladeRF x40 device. (Simply change the “40” to “115” for an x115.)

bladeRF> set vctcxo_tamer off

  VCTCXO tamer mode: Disabled

bladeRF> flash_init_cal 40 0x8759
[INFO @ usb.c:498] Erasing 1 blocks starting at block 3
[INFO @ usb.c:503] Erased block 3
[INFO @ usb.c:511] Done erasing 1 blocks
[INFO @ usb.c:705] Writing 1 pages starting at page 768
[INFO @ usb.c:709] Writing page 768
[INFO @ usb.c:718] Done writing 1 pages
bladeRF> quit

Below is a picture of a setup using a Leo Bodnar Precision Frequency Reference (GPS Clock),
configured for a 10 MHz output with 16 mA drive strength (configuration). Because this device provides a 3.3V signal and the FPGA input requires 1.8V, a 10 dB attenuator is used. Although the resulting voltage is closer to 2.0V, this is still well within the acceptable limits of the associated Cyclone IV IO bank. (We don’t recommend going much higher, however.)

GPSDO test setup

As shown above, J71-1 is connected to the 10 MHz output, through the attenuator. J72-2 is a connection to ground. One oscilloscope probe is monitoring the VCTCXO trim DAC voltage, via TP40. Another is monitoring the input on J72-1.

We can monitor the VCTCXO tamer via the trim DAC voltage, as shown in the following oscilloscope captures. In the first capture, we can clearly see the different stages of the tamer implementations. Prior to enabling the tamer, we see the factory calibrated value, which is quite close to the final result!

Once the tamer has been enabled, it first calculates the frequency errors obtained when using the minimum and maximum VCTCXO trim DAC values. The tamer then makes an initial coarse guess at the required trim DAC value using a linear approximation of the frequency-error response.

VCTCXO coarse tuning

After obtaining an initial guess the tamer begins running a continuous fine tune operation. In this stage, the tamer tracks frequency error over 1-second, 10-second, and 100-second intervals and updates the VCTCXO trim DAC value, based upon the magnitude of the detected error.

In the below capture, we can see the tamer reacting to an environmental stimulus, in which warm air was blown at the VCTCXO. In response to this stimulus, the tamer slightly increases the trim DAC voltage to compensate. It then reduces it once the stimulus has been removed.

VCTCXO fine tuning

Arbitrary SMB Output Frequencies

It is now possible to configure the bladeRF’s SMB clock output to generate arbitrary frequencies, thanks to a patch set kindly provided by Adam Greig. This functionality is exposed via the following libbladeRF functions:

This can be achieved in the bladeRF-cli via an added optional frequency argument to the set mimo command:

set mimo master <frequency>

DC offset calibration routines

The DC offset calibration routines have been revamped to address some of the issues reported on our GitHub tracker and to yield improved performance. In the near future we’ll be adding the ability to perform the TX calibration in an external loopback configuration; this should help yield even better results on the transmit side. On the RX side, we recommend disconnecting and/or terminating the RX input when performing this calibration.

In order to allow users to integrate these routines (and modifications) into their own projects, they have been relicensed under an MIT license. You can now find dc_calibration.h and dc_calibration.c in the bladeRF repository’s host/common directory.

Firmware Updates

The FX3 firmware and its associated build have been updated for version 1.3.3 of the SDK. For those developing firmware modifications, the only required changes are likely a change of FX3_ROOT in the file.

To assist with debugging, a simple logging mechanism has been added to the firmware. This log may be accessed via the libbladeRF bladerf_get_fw_log() function. The bladeRF-cli provides a fw_log command atop of this function.

XB-100 Support in libbladeRF and bladeRF-cli

The XB-100 was originally intended to help folks developing on the FPGA access a few spare I/O pins while debugging. However, there’s been some interest in using this for other purposes, such as controlling a T-R switch (with proper isolation and logic level conversion, of course) from host software.

bladerf_expansion_attach() now supports the XB100, and convenience macros for I/O mappings the XB100 and XB200 have been added. It is possible to access a subset (including a single pin) of the expansion port I/O via these libbladeRF functions and macros.

The bladeRF-cli exposes these functions via the xb_gpio and xb_gpio_dir, and allows either the entire GPIO (direction) register to be accessed, or an individual pin to be accessed. More information about this can be found here on our wiki.

TX Buffering Fixes

This latest release includes an important fix that addresses a defect in which not all available TX-side buffers were being utilized. If you had previously run into any issues pertaining to transmit underruns, please give these latest changes a shot.


Per request, we’ve introduced a LIBBLADERF_API_VERSION macro to libbladeRF.h to better allow developers to test for the availability of some of the aforementioned new API features at compile-time.

Wrapping Up

While keeping busy, we know we let our blog become a bit inactive. One of our New Year’s resolutions is to change this, and we certainly appreciate any help that members of the SDR community would like to offer. If you have a project or product using the bladeRF, please feel free to contact us to tell us all about it. We’d be happy to give it a spin and post about it here.

As always, thank you so much to everyone in the community for contributing fixes, bug reports, feedback, suggestions, and so much more. In particular, we’d like to thank:


Jon (jynik)
